Automatic Transfer Switch ATS-16

Introduction:

This SMAP Automatic Transfer Switch ATS-16 is designed with two independent power inlets to supply power to the load from a primary power source. Should primary power source fail, the secondary will automatically back up the connected equipment without any interruption. The transfer time from the AC source to another UPS is seamless for the connected equipment. After switching to a secondary power source, the ATS-16 can also switch power back to the preferred primary input when power to the primary input is restored.

• 16A max. input current for 1–3kVA UPS
• Powered by two separately independent power sources
• Dual power supply for redundancy power protection for output device
• Provides seamless power switch between UPS and AC source for IT equipment

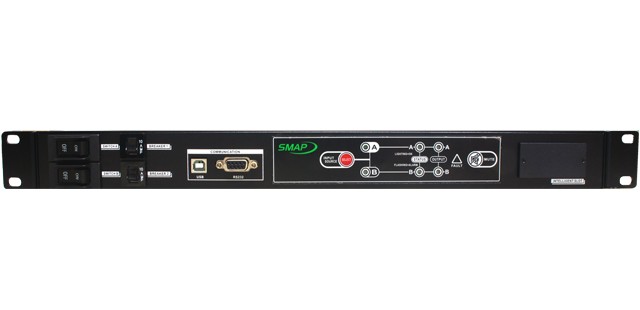

• Preferred source selection on front panel
• Highly reliability 19" rack design (1U) to fit into a diverse working environment
• Built-in USB, RS-232, dry contact communications and network support (option)

Specification:

General
Model	SMAP ATS-16
Catalogue Series	19" rack mount 1U
Dimension (W x D x H, mm)	430 x 315 x 44
Dimension (W x D x H, inch)	16.9 x 12.4 x 1.73
Net Weight (kg)	4.8
Electrical Input
Input Voltage	220/230/240VAC
Acceptable Input Voltage	160VAC ~ 290VAC
Input Frequency	50/60Hz
Maximum Input Current	16A

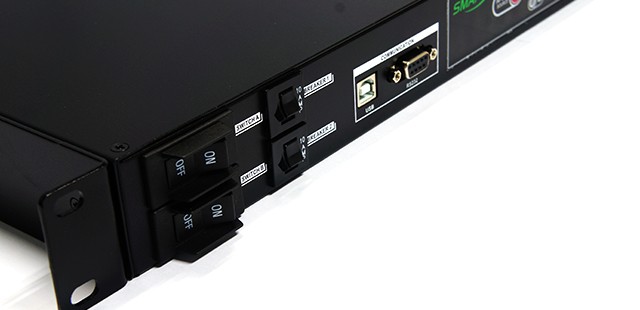

Input Switch	(2) Input switch for source A and source B
Electrical Output
Output Voltage	220/230/240VAC
Maximum Output Current	10A, 16A of connection
Transfer Time	8 ~ 12 ms (Typical)
Output Overload Protector	(2) Resettable circuit breaker for 2 groups IEC60320-C13, 10A
Connection
Input Connection	(2) IEC60320-C20, 16A

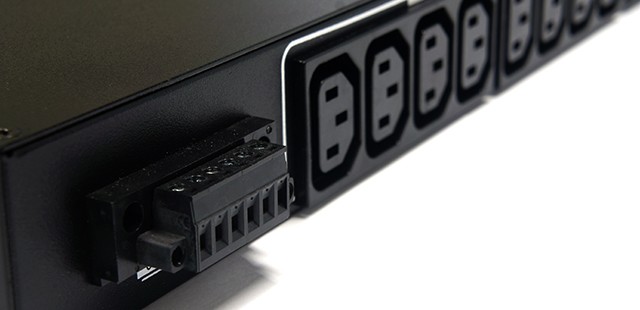

Output Receptacle	(8) IEC60320-C13, 10A
	(1) IEC60320-C19, 16A
Communications	USB, RS-232, dry contact, Intelligent slot for optional SNMP card
Indicators & Management
Indicator	Source A, Source B, Output, Fault
Performance
MTBF	> 250,000 (Hours)
Environmental & Standards
Operating Conditions	0 ~ 95% RH @ -5 ~ 45°C (non-condensing)
Safety & Standards	IEC60950-1, CE
EMI	IEC62310-2, C1
EMC	IEC61000-2/3/4
