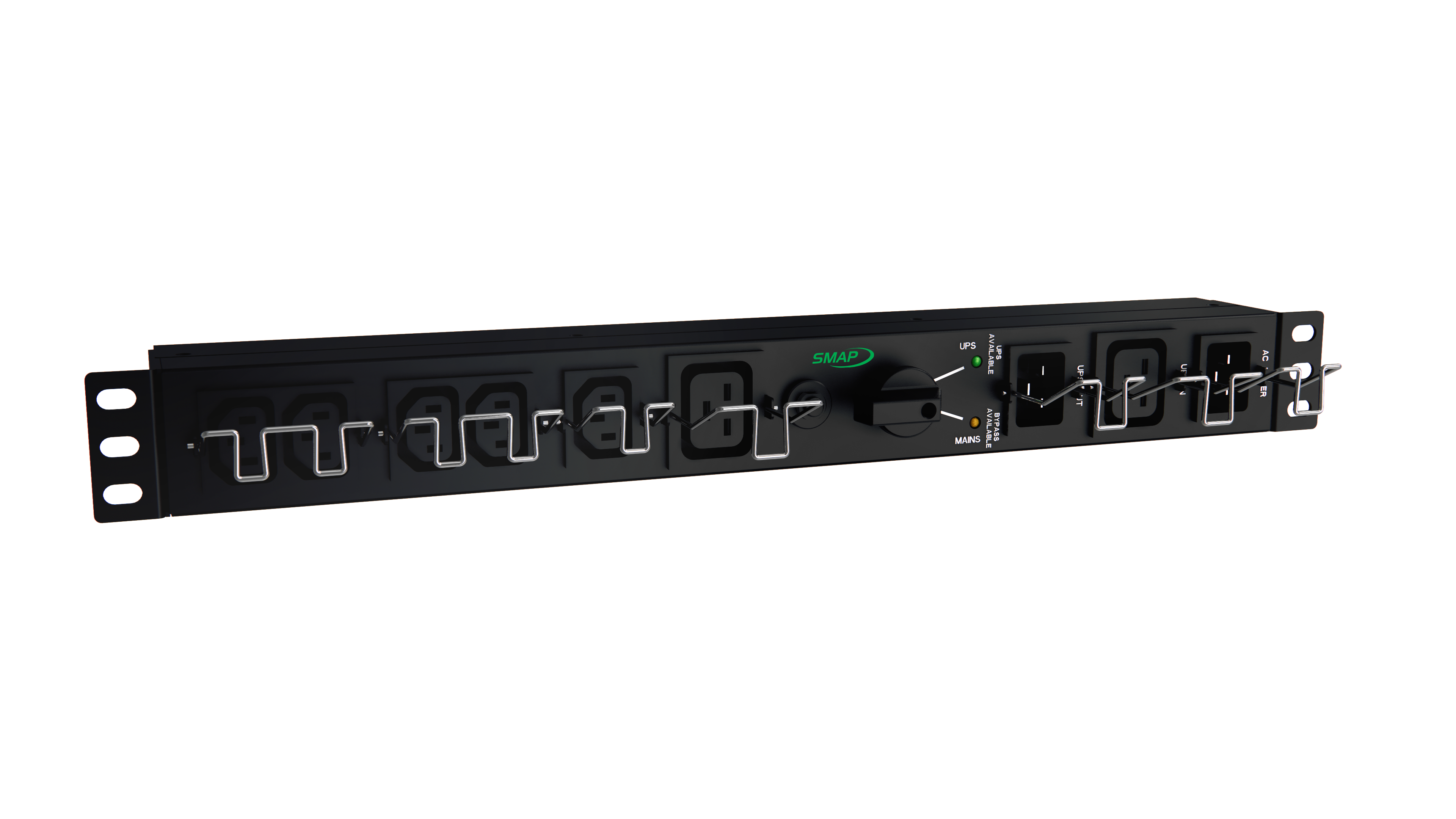

Maintenance Bypass Switch MBS-PDU16
Introduction:
The MBS-PDU16 is used as an external Power Distribution Unit (PDU) with maintenance bypass function in conjunction with 1~3kVA UPS systems or large-scale voltage regulators. It allows to manually transfer of the connected equipment to utility power via a bypass switch, permitting scheduled maintenance or UPS replacement without power interruption. Combined with power distribution feature and the compact design, it provides maintenance bypass function and power saving within a compact mechanism.
- Up to 16A for 208/220/230/240 VAC
- Provides continuous power to connected equipment during UPS maintenance via simple rotary switch
- Make before break function
- Provides rack or tower design to fit into a diverse working environment
- Simple installation with plug-and-play socket type
- Suitable for all 1~3kVA UPS
Specification:
| General | ||
| Model | MBS-PDU16 | |
| Current Rating | 16A max. for 208/220/230/240VAC | |
| Voltage Rating | 208/220/230/240VAC | |
| Catalogue Series | 19″ rack mount 1U | |
| Dimension (W x D x H, mm) | 439 x 60 x 50 | |
| Dimension (W x D x H, inch) | 17.28 x 2.36 x 1.97 | |
| Weight (kg) | 1.5 | |
| Electrical Input | ||
| AC Power Input | (1) IEC320-C20, 16A |  |
| UPS Input | (1) IEC320-C19, 16A |  |
| UPS Output | (1) IEC320-C20, 16A | |
| Electrical Output | ||
| Output To Device | (5) IEC320-C13, 10A |  |
| (1) IEC320-C19, 16A | ||
| Output Overload Protector | Resettable Circuit Breaker | |
| Indicators & Management | ||
| Rotary Switch | Make Before Break | |
| Indicator | Green at UPS Mode, Orange at Mains Mode | |
| Environmental & Standards | ||
| Operating Ambient Temperature | 0°C to +50°C | |
| Storage Ambient Temperature | -20°C to +60°C | |
| Humidity | 0 to 95% (non-condensing) | |
| Standards | EN 62368-1, CE | |
