GXR-S 1-3kVA

GXR-S 1-3kVA
Delivering premium backup power and scalable battery run times for servers, voice/data networks and storage systems, the GXR-S 1-3 kVA UPS is the ideal solution for both rack and stand-alone installations. A qualified UPS, the GXR-S 1-3 kVA graphical LCD interface and robust power management software makes managing your UPS easy even in virtualized environments

icon-all-06

GXRL-3000 -1

  • Technical Specifications
  • Features
  • Option
  • Software
  • GXR-S 1-3 kVA UPS - Technical Specifications
    Product Snapshot
    Power Rating 1000-3000 VA
    Voltage 220VAC (Default configurable to 200/208/230/240VAC)
    Frequency 50/60 Hz
    Configuration Rack/Tower
    UPS Model
    Part Number Power Rating (VA/Watts) Input Plug Output Receptacles
    GXR-1000S/
    GXR-1000SL
    1000/900 (1) IEC320-C14, 10A (8) IEC320-C13, 10A
    GXR-1500S/
    GXR-1500SL
    1500/1350 (1) IEC320-C14, 10A (8) IEC320-C13, 10A
    GXR-2000S/
    GXR-2000SL
    2000/1800 (1) IEC320-C20, 16A (8) IEC320-C13, 10A
    GXR-3000S/
    GXR-3000SL
    3000/2700 (1) IEC320-C20, 16A (8) IEC320-C13, 10A (1) IEC320-C19, 16A
  • GXR-S 1-3 kVA UPS - Features
    • True online double-conversion
    • Output power factor of 0.9
    • Wide input voltage range (110-300 VAC)
    • 50Hz/60Hz frequency converter mode
    • Eco mode operation for energy saving (ECO)
    • Emergency power off function (EPO)
    • Smart battery charger optimizing battery performance up to 50%
    • Maintenance bypass switch available
    • Hot-swappable battery design
    • Programmable power management outlets
  • GXR-S 1-3 kVA UPS - Option

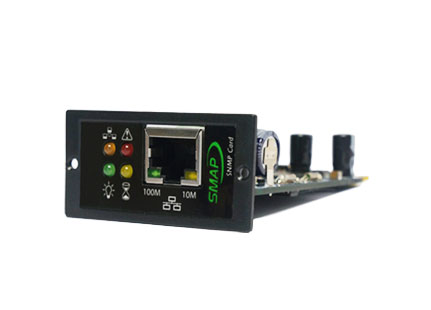

    SNMP Card SNMP Card
    • SNMP card is for UPS monitoring and management, it can get hold of the status from and issue commands to the UPS. User can use SNMP managers or Web browser to manage the UPS through an Ethernet. It supports for virtually all operating systems to peacefully shut down the computers over the network.
    • 1 x RJ45 interface

    AS400 Card AS400 Card
    • The AS400 card provides dry-contact closure signal “OPEN” or “CLOSE”. It is applicable to the UPS with availability of Intelligent Slot. All online UPS has been equipped with Intelligent Slot.
    • 1 x DB9 interface or Terminal block

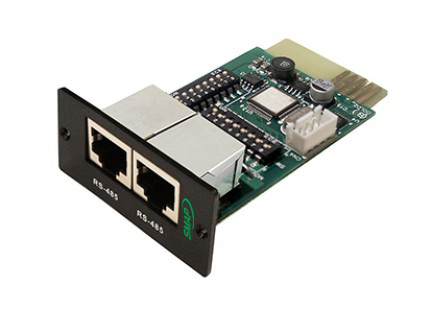

    ModBus Card ModBus Card
    • The ModBus card provides UPS systems with the functionality of communication through MODBUS protocol: The Modbus card implements MODBUS RTU protocol; provides MODBUS functions including read Holding Registers and write Registers; and provides RS232 and RS485 interface

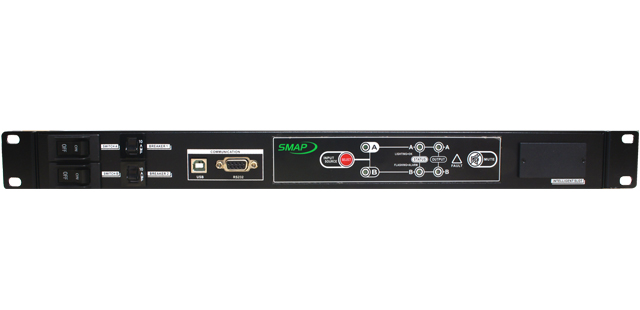

    Automatic Transfer Switch ATS-16 ATS-16
    • This ATS-16 is designed with two independent power inlets to supply power to the load from a primary power source. Should primary power source fails, the secondary will automatically back up the connected equipment without any interruption.

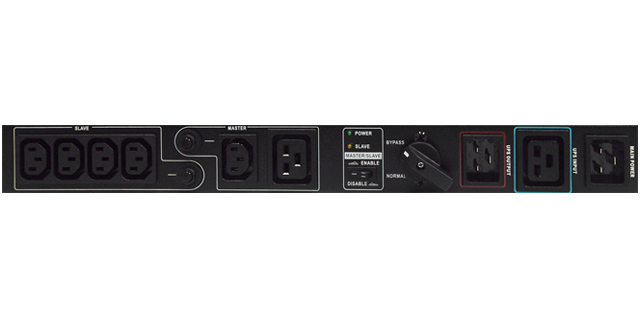

    Maintenance Bypass Switch MBS-PDU MBS-PDU
    • The product is used as an external Power Distribution Unit (PDU) in conjunction with UPS systems or large-scale voltage regulators. It allows to manually transfer the connected equipment to utility power via a bypass switch, permitting scheduled maintenance or UPS replacement without power interruption.
  • GXR-S 1-3 kVA UPS - Software

    The ViewPower is UPS management software which is perfect for users or enterprises can monitor and manage from one to multiple UPSs in a networked environment, either LAN or Internet. It can not only prevent data loss from power outage and safely shutdown systems, but also store programming data and scheduled shutdown UPSs.

    Features
    • Allows control and monitoring of multiple UPSs via LAN and internet
    • Real time dynamic graphs of UPS data (voltage, frequency, load level, battery capacity)
    • Safely OS shutdown and protection from data loss during power failure
    • Warning notifications via audible alarm, popup screen, broadcast, SMS and email
    • Scheduled UPS on/off, battery test, outlet on/off control and audible alarm
    • Password security protection and remote access management
